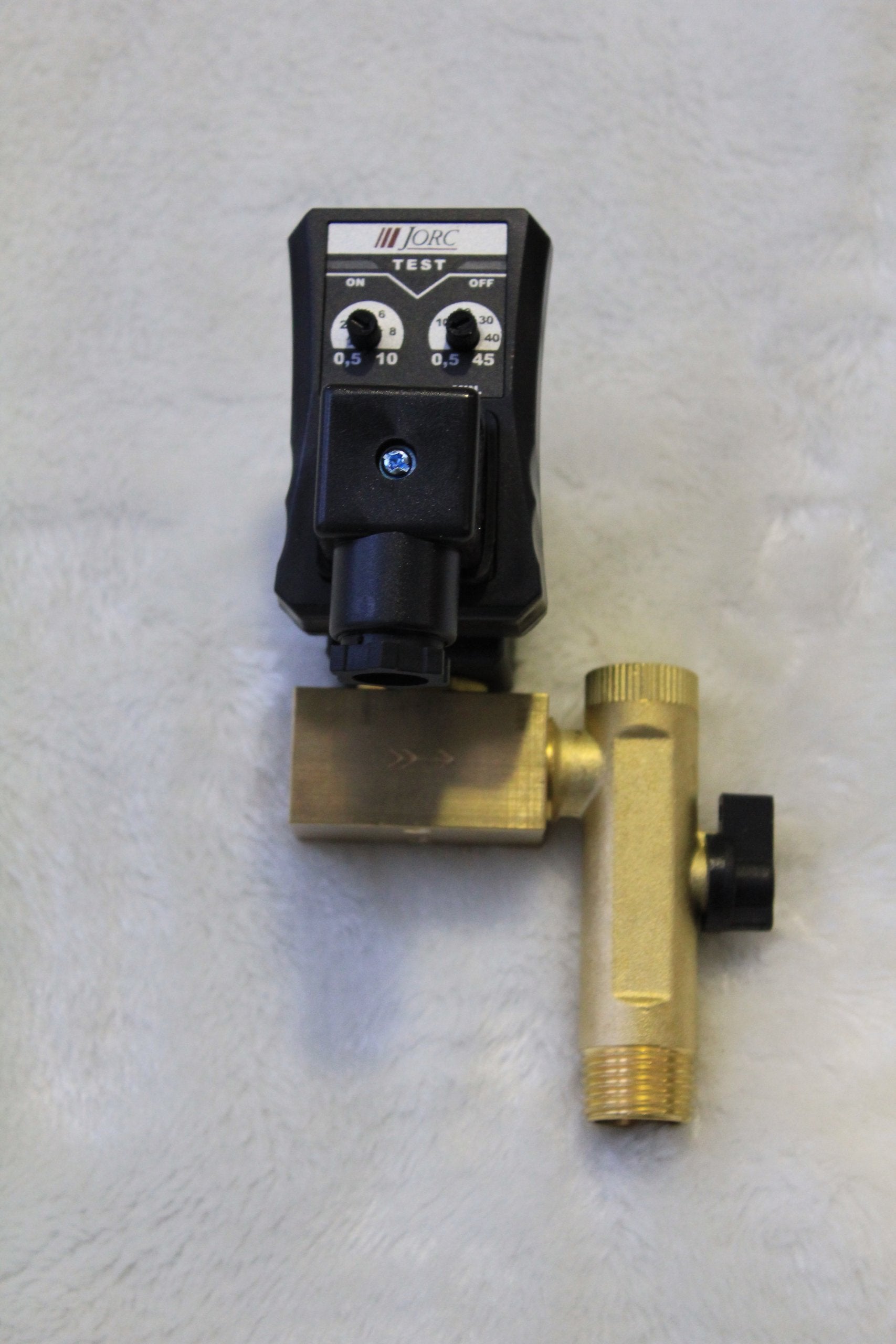

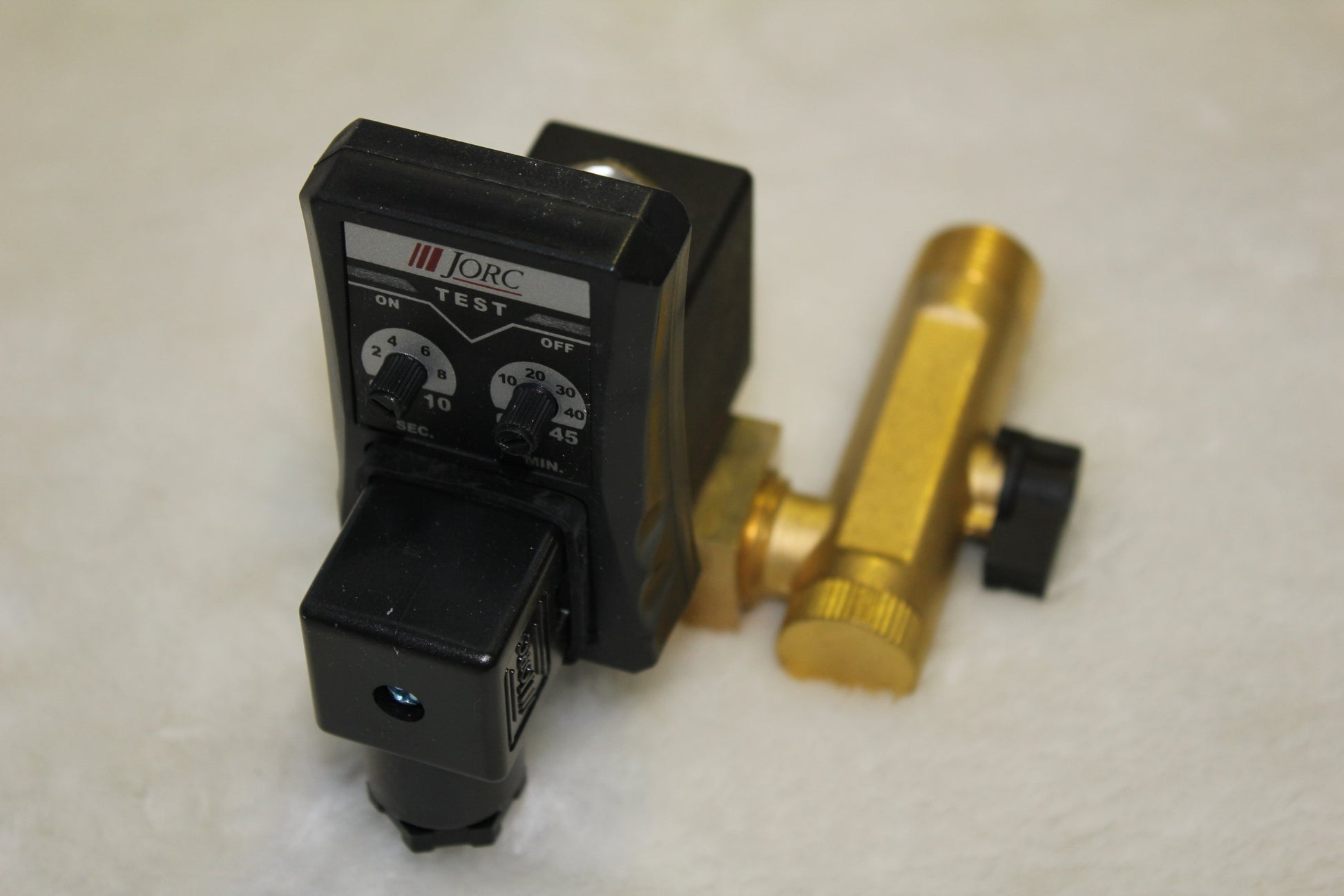

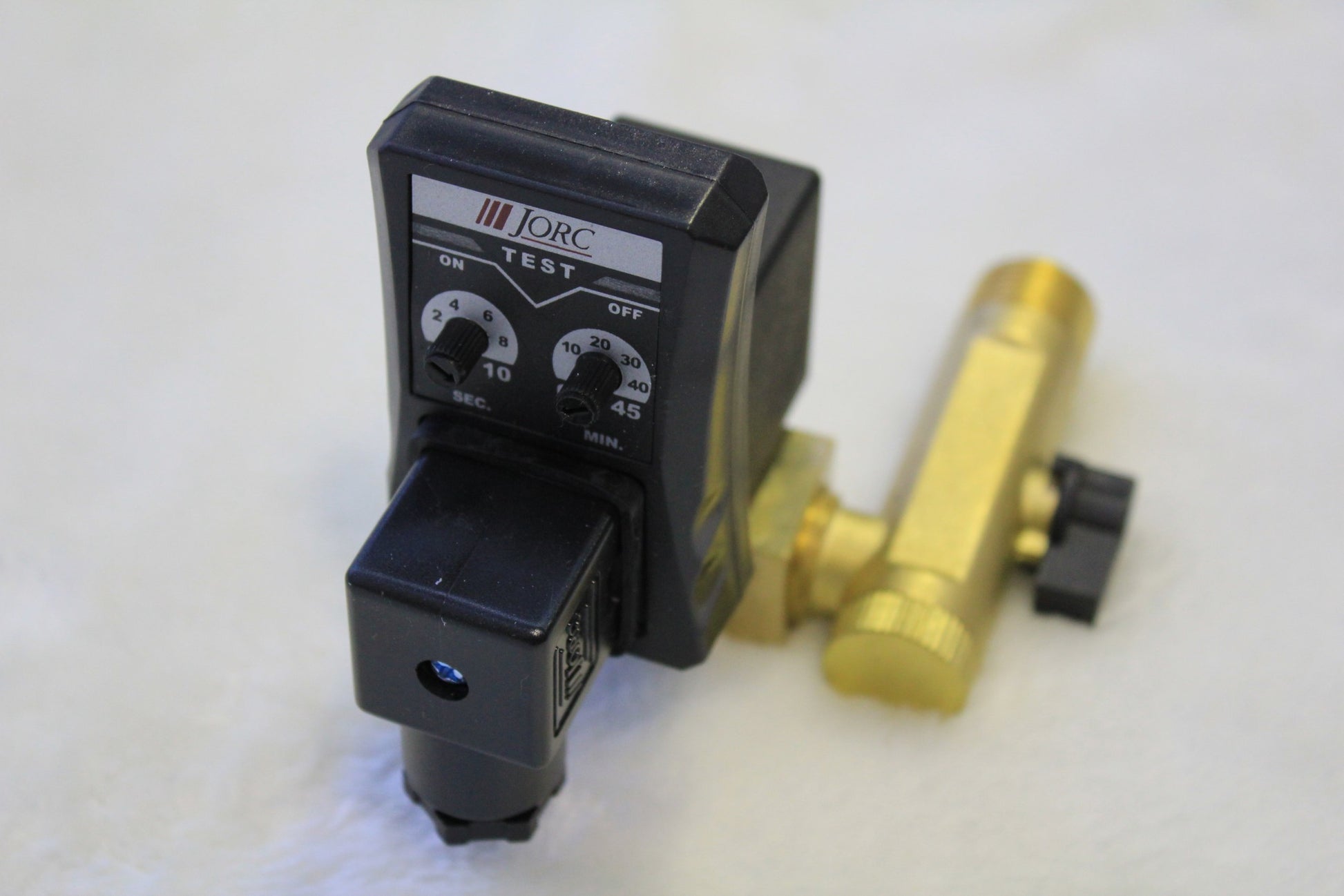

Electronic Timer Control Condensate Drain. Auto Drain, Moisture Drain. solenoid

TIMER
Interval time 0.5 - 45 minutes, adjustable
Discharge time 0.5 - 10 seconds, adjustable
Supply voltage options 12 - 380 VAC/VDC, 50/60 Hz
Current consumption 4mA maximum
Operating temperature -40° F to +131° F
Environmental protection IP 65, NEMA 4 when installed
Housing material ABS plastic FR grade
Connection DIN 43650AISO 4400
Indicators 1 LED (yellow) indicating ON
1 LED (yellow) indicating OFF

VALVE
Type 2/2 way direct acting
In/out ports 1/4”,  1/2” NPT
Pressure range 0 - 230 psi (For higher pressures up to 6000 psi – consult factory)
Temperature range. 34° F/131° F ambient
Medium temp. Max. 131° F|
Valve body Brass orifice 4.5 mm (stainless steel available)
Supply voltage options 12 - 380 VAC/VDC, 50/60 Hz (100% ED)
Coil Insulation Grade H-grade
Environmental Protection  IP 65
Valve seal FPM
See coil for correct voltage/ voltage tolerance +/- 10%
